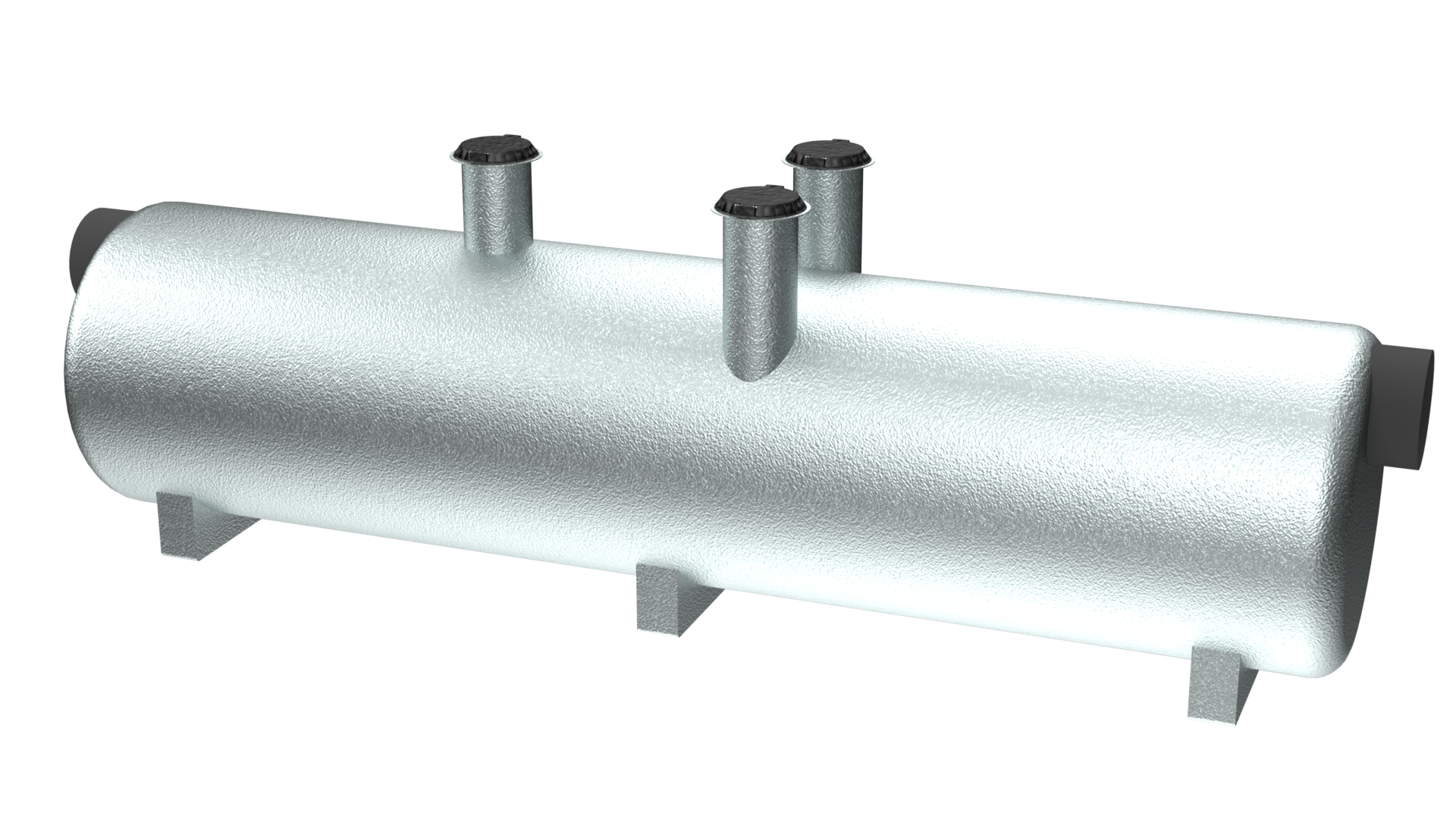

EPOXY COALED CARBON STEEL DOUBLE WALL OIL WATER SEPARATOR (OWS) BY-PASS
EPOXY COALED CARBON STEEL DOUBLE WALL OIL WATER SEPARATOR (OWS) BY-PASS
Yerli Üretim
Stok Kodu: 6824
Bypass oil-water separator conforming to class I according to EN 858,
single and double walled tank made of carbon steel
is available in its structure. Inner and outer tank walls are epoxy coated
and integrated mud trap. Below the frost line
designed for underground installation. Rounded shape and
Its non-porous surface is resistant to oils and acids on interior and exterior surfaces.
resists, so easy and precise cleaning and disposal
is provided. Inlet and outlet connections with suitable flange connections
or pipe connections. Handles for crane transportation
is suitable for Automatically when it reaches its capacity
with 304 quality/316 quality stainless steel floating system
equipped. Washable koalens filters, small oil
fuses and holds the particles and provides more precise separation
is designed for The separator removes 10% of the initial flow
the remaining 90% through the bypass line to treated water.
passes through. The separator complies with load class EN 124 D400 (40 tons)
Includes cast iron access cover with sealed gasket. Discriminator
optionally oil level monitoring alarm device,
leak sensor, overflow sensor, vacuum leak detector and
sampling container.
CARBON STEEL
Fuel stations, Parking lots, Truck loading and unloading
fields, car dealerships, repair shops,
car washes, bus garages, military hangars and warehouses
facilities, fire stations, engine cleaning workshops,
vehicle recovery parking lots,
Airport apron, Train - Metro stations, Container
terminals, Industrial plants, risk of accidental oil spills
oil facilities.
Documents:
| Kod | NSB(lt/sn) | DN | Tepe Akış Hızı(lt/sn) | Drenaj Alanı(m²) | Yağ Hacmi(lt) | Tortu Hacmi(lt) | A | B | LINK | |||||||||||||||
| 58243 | 3 | 300 | 30 | 1700 | 196 | 300 | 1000 | 2500 | ||||||||||||||||
| 58244 | 4 | 300 | 40 | 2500 | 240 | 400 | 1000 | 2800 | ÜRÜNE GİT | |||||||||||||||
| 58245 | 5 | 300 | 50 | 2950 | 260 | 500 | 1200 | 2100 | ÜRÜNE GİT | |||||||||||||||
| 58246 | 6 | 300 | 60 | 3400 | 283 | 600 | 1200 | 2500 | ÜRÜNE GİT | |||||||||||||||
| 582410 | 10 | 300 | 100 | 5600 | 442 | 1000 | 1500 | 2500 | ÜRÜNE GİT | |||||||||||||||
| 582415 | 15 | 300 | 150 | 8400 | 618 | 1500 | 1500 | 3500 | ÜRÜNE GİT | |||||||||||||||
| 582420 | 20 | 400 | 200 | 11200 | 795 | 2000 | 1500 | 4500 | ÜRÜNE GİT | |||||||||||||||
| 582425 | 25 | 400 | 250 | 14000 | 1005 | 2500 | 2000 | 3200 | ÜRÜNE GİT | |||||||||||||||
| 582430 | 30 | 400 | 300 | 17000 | 1256 | 3000 | 2000 | 4000 | ÜRÜNE GİT | |||||||||||||||
| 582440 | 40 | 500 | 400 | 22500 | 1570 | 4000 | 2000 | 5000 | ÜRÜNE GİT | |||||||||||||||
| 582450 | 50 | 600 | 500 | 28000 | 1884 | 5000 | 2000 | 6000 | ÜRÜNE GİT | |||||||||||||||
| 582460 | 60 | 600 | 600 | 33500 | 2061 | 6000 | 2350 | 5000 | ÜRÜNE GİT | |||||||||||||||
| 582470 | 70 | 600 | 700 | 39000 | 2551 | 7000 | 2350 | 6200 | ÜRÜNE GİT | |||||||||||||||
| 582480 | 80 | 700 | 800 | 44500 | 2846 | 8000 | 2350 | 6900 | ÜRÜNE GİT | |||||||||||||||
| 582490 | 90 | 700 | 900 | 50000 | 3189 | 9000 | 2350 | 7700 | ÜRÜNE GİT | |||||||||||||||
| 5824100 | 100 | 800 | 1000 | 56000 | 3434 | 10000 | 2350 | 8300 | ÜRÜNE GİT | |||||||||||||||
| 5824120 | 120 | 800 | 1200 | 67000 | 3886 | 12000 | 2350 | 9400 | ÜRÜNE GİT | |||||||||||||||
| 5824125 | 125 | 800 | 1250 | 69800 | 4175 | 12500 | 2350 | 10000 | ÜRÜNE GİT | |||||||||||||||
| 5824150 | 150 | 800 | 1500 | 83500 | 4592 | 15000 | 2350 | 11100 | ÜRÜNE GİT | |||||||||||||||
