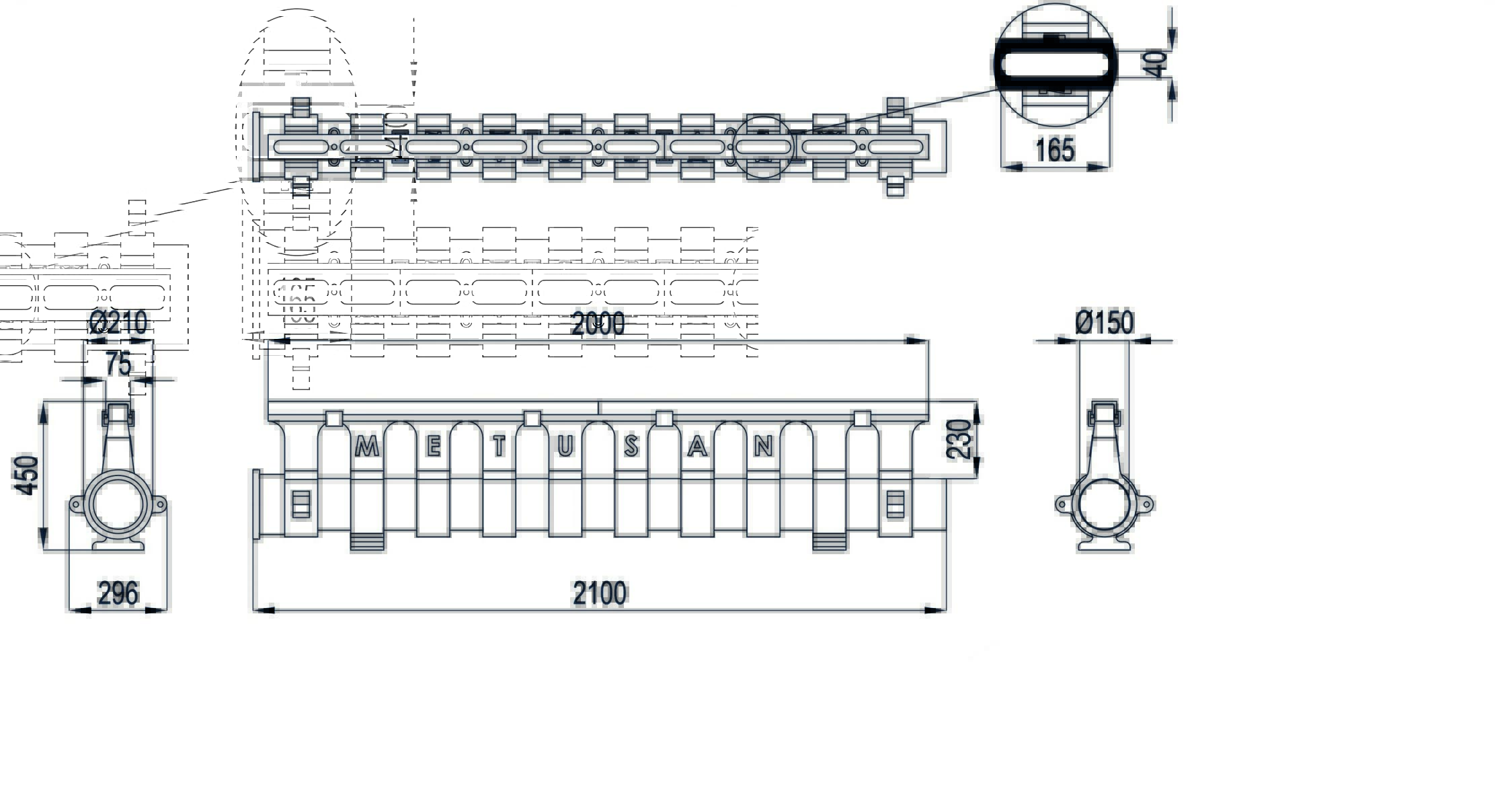

Teknik çizim

product

Metustar 180

Yerli Üretim

Stok Kodu: MMS-180

Drainage of very large hard-surfaced areas such as airports, city squares, and large shopping mall car parks requires rapid control of high amounts of rainwater. Drainage grates can be stolen for any reason, break and require maintenance and repair.
The reliable design of the Metustar Slot Drain systems allows the drainage of large amounts of rainwater in the required load carrying class and without the use of drainage grates.
Its installation is fast and easy (Each unit is shipped as a single piece, fully assembled)
- It is safe and the risk of foreign matter escaping is minimized.
- It is resistant to impact and corrosion.
- Provides a clean and aesthetic appearance It cleans itself, requires little maintenance.

Only the metal or composite upper grille part of the Metustar Slot Drain system remains on the surface and exposed. Upper grid part is galvanized or stainless steel, Ductile iron (Ductile casting) or high strength composite. Other parts of the system are embedded in concrete and provide strength equivalent to the load carrying and endurance properties of the concrete it is in. Thus, it is ideal for airports, parking lots with heavy traffic, Container termainals, quays, warehouses, truck and railway logistics centers.
Documents:
CodeDescriptionLength (mm)Width Overall (mm)Depth Overall (mm)Weight (kg)Link
MMS-180-DISMetustar 180channel assembly ductile iron edge rail single slot2000Ø210-29645021
MMS - 180 - DIDMetustar 180 channel assembly ductile iron edge rail double slot2000Ø210-29645522
MMS - 180 - DITMetustar 180 channel assembly ductile iron edge rail three slot2000Ø210-29645022
MMS - 180 - GSHMetustar 180 channel assembly galvanised steel edge rail2000Ø210-29645021
MMS - 180 - GSSMetustar 180 channel assembly galvanised steel slot2000Ø210-29654220
MMS - 180 - ECMetustar 180 end cap113Ø296-0,52
MMS - 180 - RMetustar 180-400 reducer-Ø382300,35
