Metustar 400
Metustar 400
Yerli Üretim
Stok Kodu: MMS-400
Drainage of very large hard-surfaced areas such as airports, city squares, and large shopping mall car parks requires rapid control of high amounts of rainwater. Drainage grates can be stolen for any reason, break and require maintenance and repair.
The reliable design of the Metustar Slot Drain systems allows the drainage of large amounts of rainwater in the required load carrying class and without the use of drainage grates.
Its installation is fast and easy (Each unit is shipped as a single piece, fully assembled)
- It is safe and the risk of foreign matter escaping is minimized.
- It is resistant to impact and corrosion.
- Provides a clean and aesthetic appearance It cleans itself, requires little maintenance.
Only the metal or composite upper grille part of the Metustar Slot Drain system remains on the surface and exposed. Upper grid part is galvanized or stainless steel, Ductile iron (Ductile casting) or high strength composite. Other parts of the system are embedded in concrete and provide strength equivalent to the load carrying and endurance properties of the concrete it is in. Thus, it is ideal for airports, parking lots with heavy traffic, Container termainals, quays, warehouses, truck and railway logistics centers.
Documents:

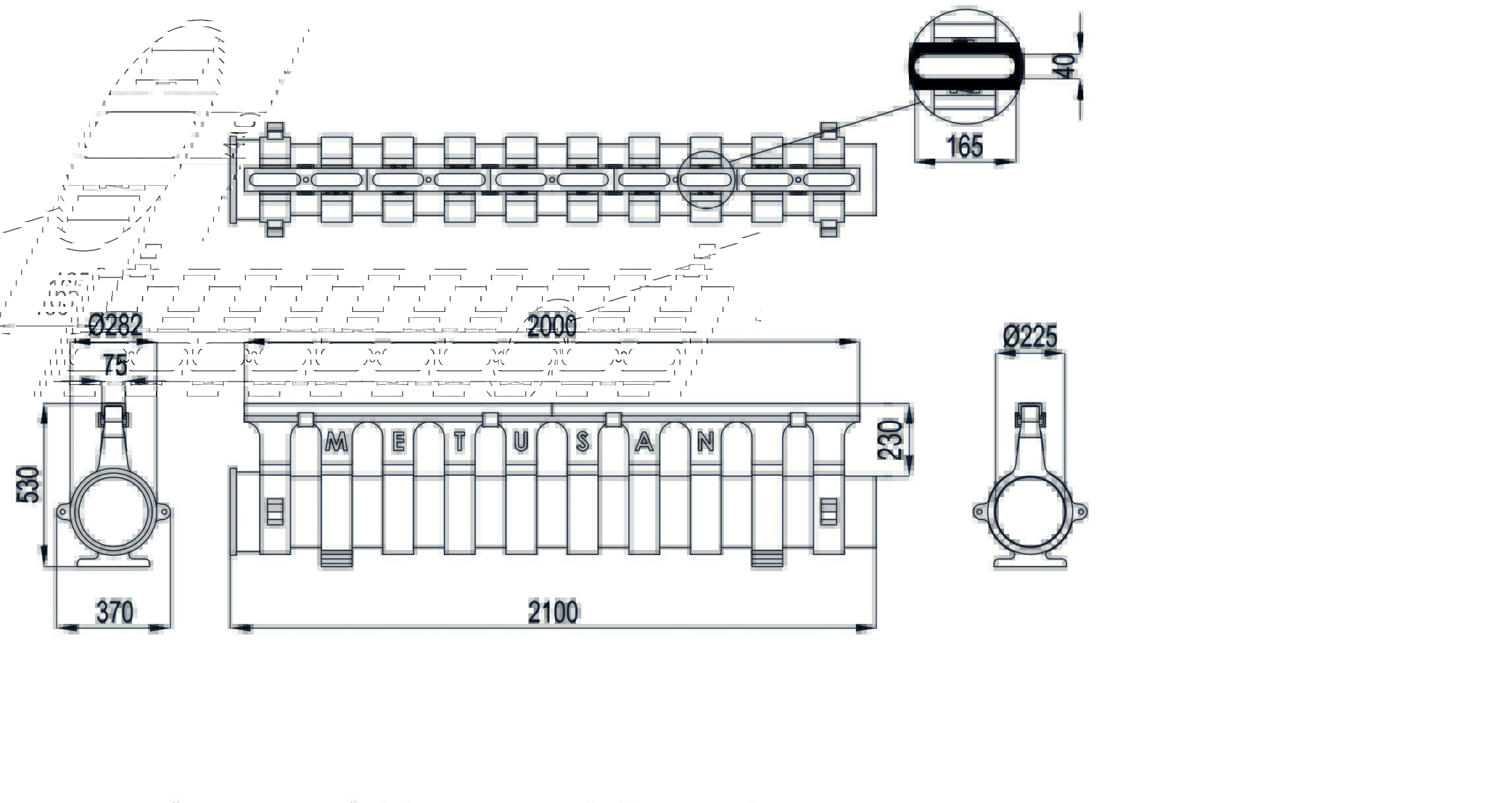

| Code | Description | Length (mm) | Width Overall (mm) | Depth Overall (mm) | Weight (kg) | Link |
|---|---|---|---|---|---|---|
| MMS-400-DIS | Metustar 400 channel assembly ductile iron edge rail single slot | 2000 | Ø282-370 | 530 | 24,5 | |
| MMS-400-DID | Metustar 400 channel assembly ductile iron edge rail double slot | 2000 | Ø282-370 | 530 | 25,5 | |
| MMS - 400 - DID | Metustar 400 channel assembly ductile iron edge rail three slot | 2000 | Ø282-370 | 530 | 25,5 | |
| MMS - 400 - GSH | Metustar 400 channel assembly galvanised steel edge rail | 2000 | Ø282-370 | 530 | 24,5 | |
| MMS - 400 - GSS | Metustar 400 channel assembly galvanised steel slot | 2000 | Ø282-370 | 622 | 23,5 | |
| MMS - 400 - EC | Metustar 400 end cap | 113 | Ø319 | - | 0,53 | |
| MMS - 400 - R | Metustar 400-700 reducer | - | Ø508 | 30 | 0,6 |
