Metustar 4200
Metustar 4200
Yerli Üretim
Stok Kodu: MMS-4200
Drainage of very large hard-surfaced areas such as airports, city squares, and large shopping mall car parks requires rapid control of high amounts of rainwater. Drainage grates can be stolen for any reason, break and require maintenance and repair.
The reliable design of the Metustar Slot Drain systems allows the drainage of large amounts of rainwater in the required load carrying class and without the use of drainage grates.
Its installation is fast and easy (Each unit is shipped as a single piece, fully assembled)
- It is safe and the risk of foreign matter escaping is minimized.
- It is resistant to impact and corrosion.
- Provides a clean and aesthetic appearance It cleans itself, requires little maintenance.
Only the metal or composite upper grille part of the Metustar Slot Drain system remains on the surface and exposed. Upper grid part is galvanized or stainless steel, Ductile iron (Ductile casting) or high strength composite. Other parts of the system are embedded in concrete and provide strength equivalent to the load carrying and endurance properties of the concrete it is in. Thus, it is ideal for airports, parking lots with heavy traffic, Container termainals, quays, warehouses, truck and railway logistics centers.
Documents:

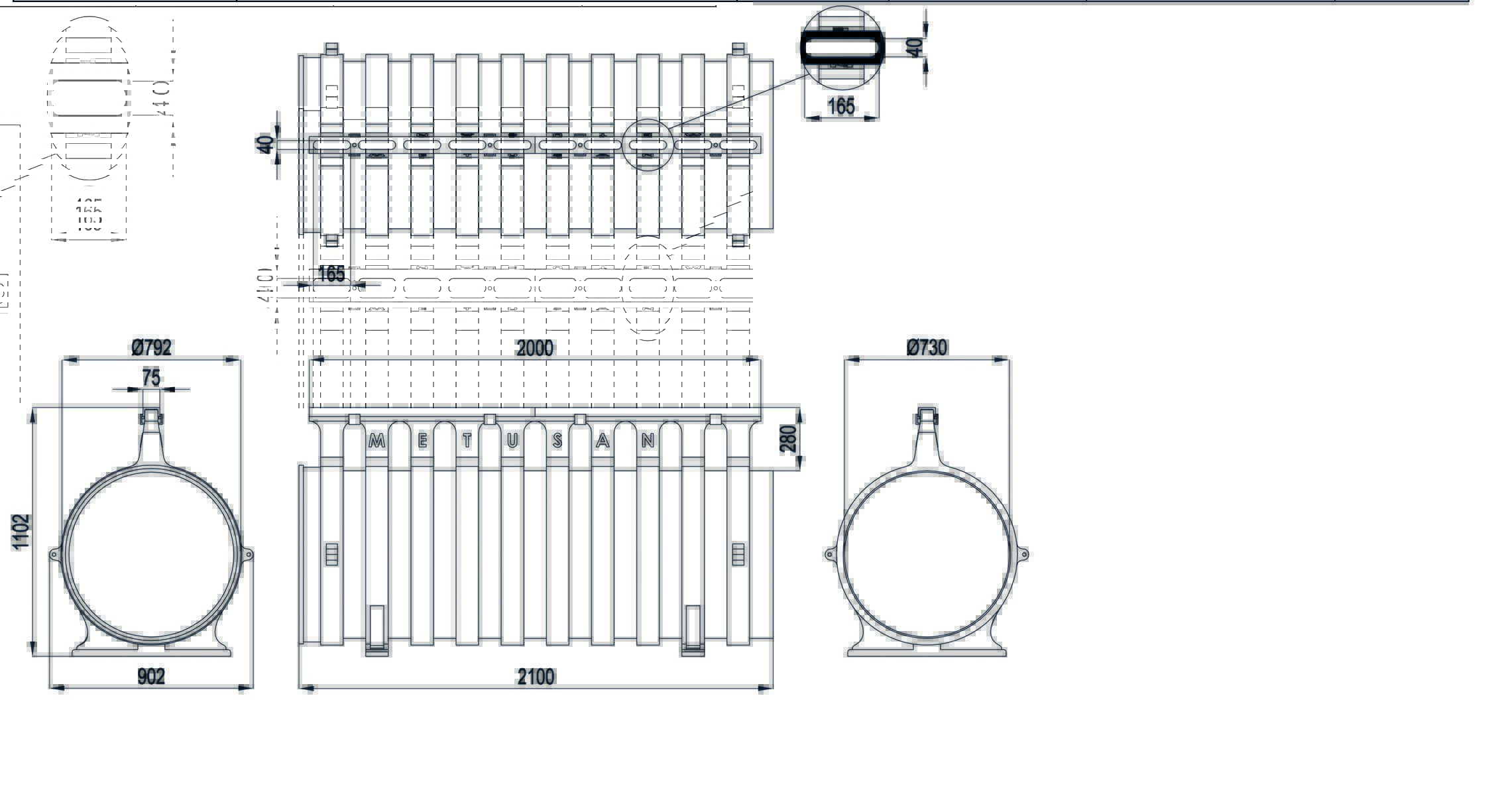

| Code | Description | Length (mm) | Width Overall (mm) | Depth Overall (mm) | Weight (kg) | Link |
|---|---|---|---|---|---|---|
| MMS - 4200 - DIS | Metustar 4200 channel assembly ductile iron edge rail single slot | 2000 | Ø792-902 | 1102 | 61 | |
| MMS - 4200 - DID | Metustar 4200 channel assembly ductile iron edge rail double slot | 2000 | Ø792-902 | 1090 | 62 | |
| MMS - 4200 - DIT | Metustar 4200 channel assembly ductile iron edge rail tree slot | 2000 | Ø792-902 | 1102 | 62 | |
| MMS - 4200 - GSH | Metustar 4200 channel assembly galvanised steel edge rail | 2000 | Ø792-902 | 1102 | 61 | |
| MMS - 4200 - GSS | Metustar 4200 channel assembly galvanised steel slot | 2000 | Ø792-902 | 1194 | 60 | |
| MMS - 4200 - EC | Metustar 4200 End Cap | 113 | Ø902 | - | 3,7 |
Since its foundation in 1977, our company has continuously developed the product series in its product range according to changing conditions through its indispensable R&D department, and has also been offering new and technological series to both domestic and international markets in line with the requirements of the era.
