EPOXY COATED CARBON STEEL OIL WATER SEPARATOR (OWS) CLASS I
EPOXY COATED CARBON STEEL OIL WATER SEPARATOR (OWS) CLASS I
Yerli Üretim
Stok Kodu: 5424

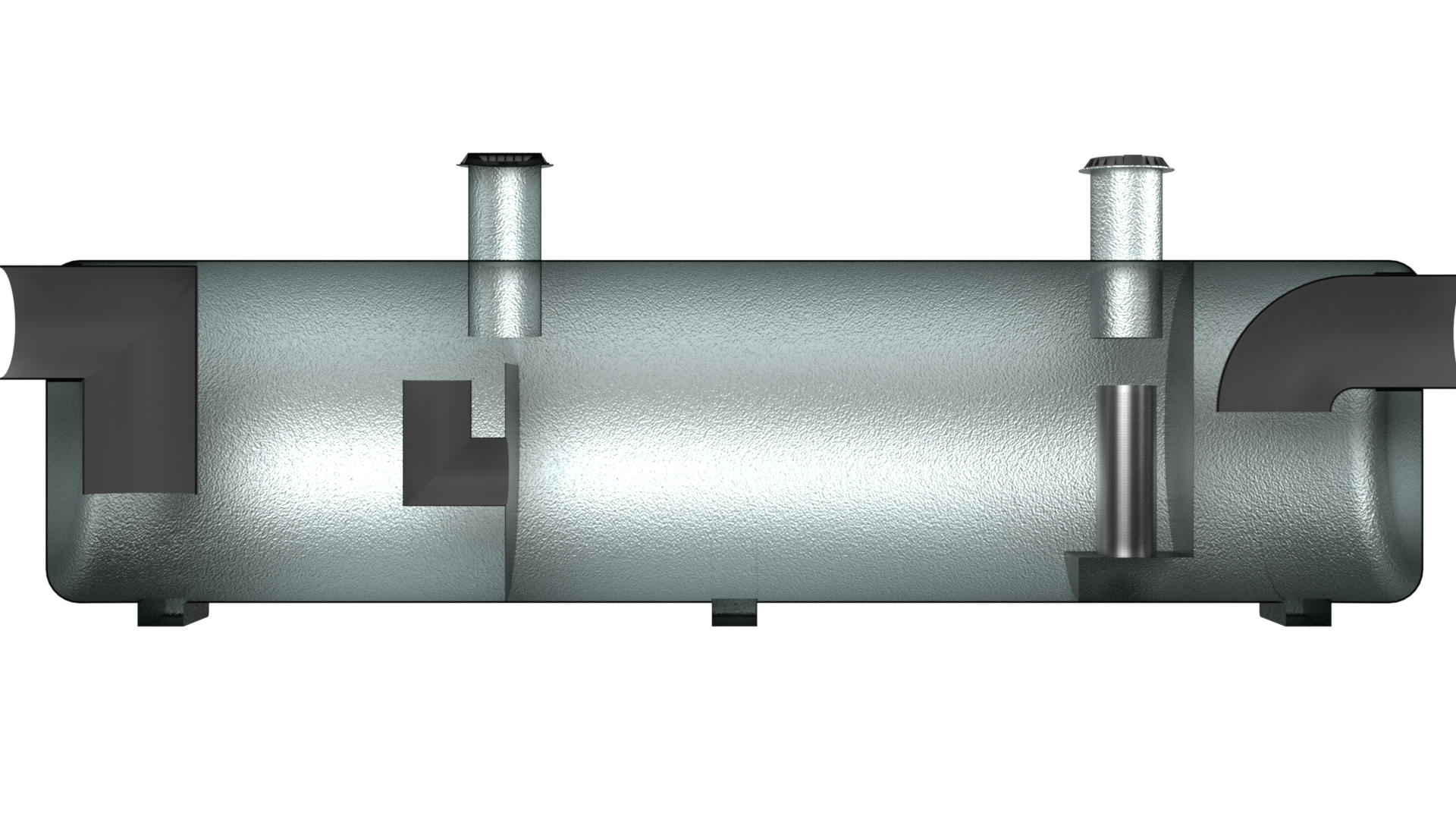

Epoxy coated carbon steel oil-water separator conforming to EN 858 class I,
made of carbon steel and single and double walled
is available in the tank structure. Inner and outer tank walls are epoxy
covered and has an integrated mud trap. Don line
designed to be installed underground under the ground. Rounded
its shape and non-porous surface, for interior and exterior surfaces
easy and gentle cleaning with resistance to oils and acids
and provides disposal. Inlet and outlet connections with suitable flange
connections or pipe connections. For crane transportation
There are suitable carrying handles. Device capacity
304 grade /316 grade that automatically shuts off when it reaches
equipped with a stainless steel floating system and specially
designed. Washable koalens filters, small oil
fuses and holds the particles and provides more precise separation
designed for Also with sealing gasket EN 124 D400
cast iron access cover suitable for load class (40 tons).
Separator optionally oil level monitoring
alarm device, leakage sensor, overflow sensor, vacuum leakage
detector and sampling container.
Fuel stations, Parking lots, Truck loading and unloading
fields, car dealerships, repair shops,
car washes, bus garages, military hangars and warehouses
facilities, fire stations, engine cleaning workshops,
vehicle recovery parking lots,
Airport apron, Train - Metro stations, Container
terminals, Industrial plants, risk of accidental oil spills
oil facilities.
Documents:
| Code | NS(lt/sec) | DN | Drainage Area(m²) | Oil Volume(lt) | Sludge Volume(lt) | A | B | LİNK | ||||||||||||||||
| 54243 | 3 | 100 | 170 | 60 | 300 | 1000 | 1250 | |||||||||||||||||
| 54246 | 6 | 125 | 340 | 120 | 600 | 1000 | 2500 | SHOW | ||||||||||||||||
| 542410 | 10 | 150 | 560 | 200 | 1000 | 1200 | 2750 | SHOW | ||||||||||||||||
| 542415 | 15 | 200 | 840 | 300 | 1500 | 1500 | 2500 | SHOW | ||||||||||||||||
| 542420 | 20 | 200 | 1120 | 400 | 2000 | 1500 | 3300 | SHOW | ||||||||||||||||
| 542425 | 25 | 250 | 1400 | 500 | 2500 | 1500 | 4400 | SHOW | ||||||||||||||||
| 542430 | 30 | 250 | 1700 | 600 | 3000 | 1500 | 5250 | SHOW | ||||||||||||||||
| 542440 | 40 | 300 | 2250 | 800 | 4000 | 2000 | 4000 | SHOW | ||||||||||||||||
| 542450 | 50 | 300 | 2800 | 1000 | 5000 | 2000 | 4750 | SHOW | ||||||||||||||||
| 542460 | 60 | 300 | 3350 | 1200 | 6000 | 2000 | 5600 | SHOW | ||||||||||||||||
| 542470 | 70 | 300 | 3900 | 1400 | 7000 | 2000 | 6500 | SHOW | ||||||||||||||||
| 542480 | 80 | 300 | 4450 | 1600 | 8000 | 2000 | 7500 | SHOW | ||||||||||||||||
| 542490 | 90 | 300 | 5000 | 1800 | 9000 | 2000 | 8500 | SHOW | ||||||||||||||||
| 5424100 | 100 | 300 | 5600 | 2000 | 10000 | 2000 | 9500 | SHOW | ||||||||||||||||
| 5424120 | 120 | 400 | 6700 | 2400 | 12000 | 2350 | 8250 | SHOW | ||||||||||||||||
| 5424150 | 150 | 400 | 8350 | 3000 | 15000 | 2350 | 10250 | SHOW | ||||||||||||||||
| 5424200 | 200 | 500 | 11100 | 4000 | 22000 | 2500 | 8500 | SHOW | ||||||||||||||||
| 5424250 | 250 | 500 | 14000 | 5000 | 30000 | 2500 | 14000 | SHOW | ||||||||||||||||
| 5424300 | 300 | 500 | 16850 | 6000 | 32000 | 3000 | 12500 | SHOW | ||||||||||||||||
