FULL RETENTION DOUBLE WALL CARBON STEEL OIL WATER SEPARATOR (OWS) CLASS I
FULL RETENTION DOUBLE WALL CARBON STEEL OIL WATER SEPARATOR (OWS) CLASS I
Yerli Üretim
Stok Kodu: 6424

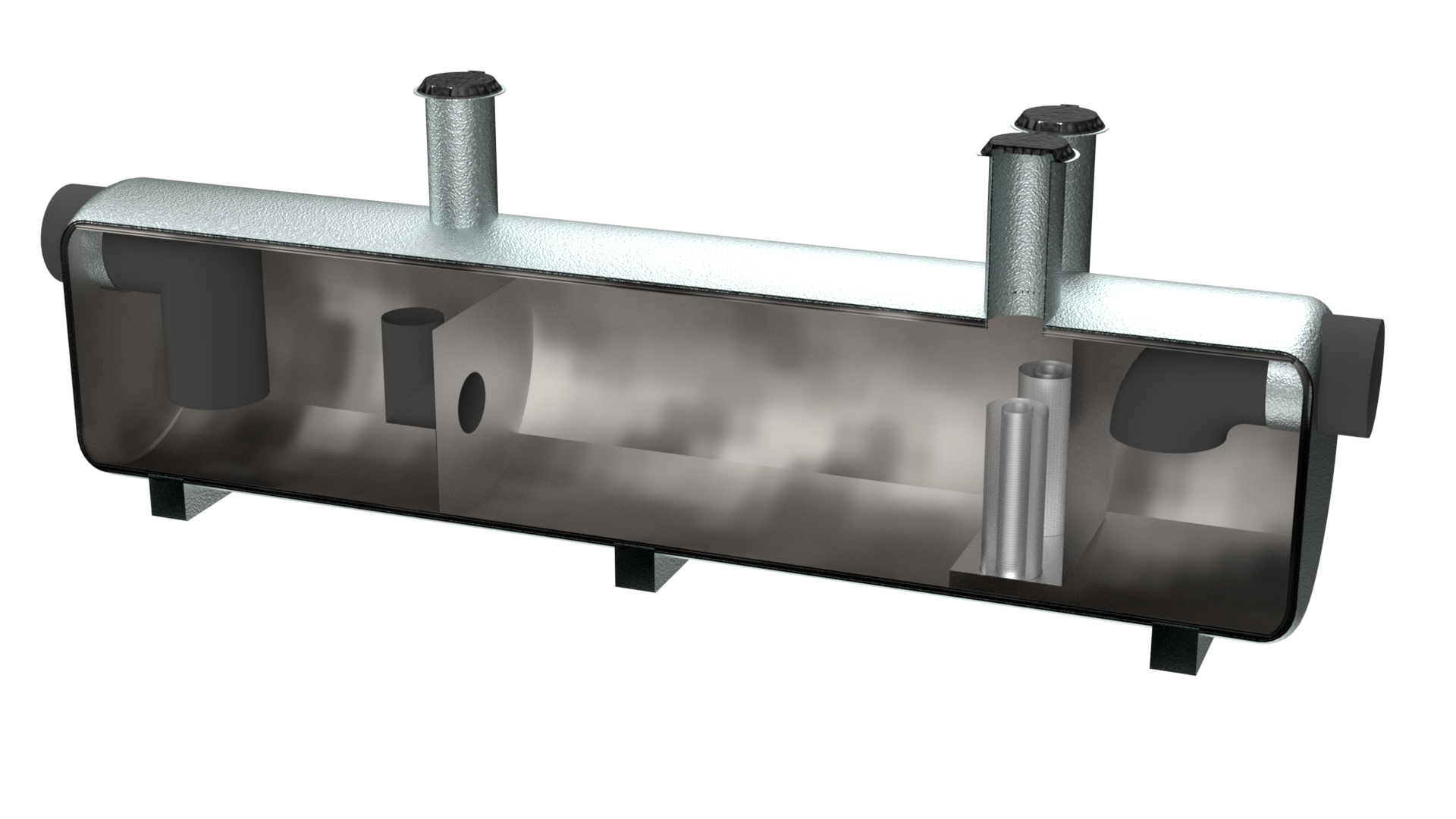

Epoxy coated carbon steel oil-water in accordance with EN 858 class I
separator is made of carbon steel and is available in single and double-walled
is available in the tank structure. Inner and outer tank walls are epoxy
covered and has an integrated mud trap. Don line
is designed to be installed underground.
Rounded shape and non-porous surface, for interior and exterior surfaces
easy and gentle, resisting oils and acids
ensures cleanliness and disposal. Convenient inlet and outlet connections
flange connections or pipe connections. Crane transportation
There are suitable carrying handles for the device. Device capacity
304 grade /316 that automatically shuts off when it reaches
equipped with a quality stainless steel floating system and special
designed as Washable koalens filters, small
fuses and retains oil particles and more precise separation
designed for Also, with sealed gasket EN
124 Cast iron access suitable for load class D400 (40 tons)
includes a cover. Optional oil level in the separator
monitoring alarm device, leakage sensor, overflow sensor,
vacuum leak detector and sampling container.
Fuel stations, Parking lots, Truck loading and unloading
fields, car dealerships, repair shops,
car washes, bus garages, military hangars and warehouses
facilities, fire stations, engine cleaning workshops,
vehicle recovery parking lots,
Airport apron, Train - Metro stations, Container
terminals, Industrial plants, risk of accidental oil spills
oil facilities.
Documents:
| Code | NS(lt/sec) | DN | Drainage Area(m²) | Oil Volume(lt) | Sludge Volume(lt) | A | B | LİNK | ||||||||||||||||
| 64243 | 3 | 100 | 170 | 60 | 300 | 1000 | 1250 | |||||||||||||||||
| 64246 | 6 | 125 | 340 | 120 | 600 | 1000 | 2500 | SHOW | ||||||||||||||||
| 642410 | 10 | 150 | 560 | 200 | 1000 | 1200 | 2750 | SHOW | ||||||||||||||||
| 642415 | 15 | 200 | 840 | 300 | 1500 | 1500 | 2500 | SHOW | ||||||||||||||||
| 642420 | 20 | 200 | 1120 | 400 | 2000 | 1500 | 3300 | SHOW | ||||||||||||||||
| 642425 | 25 | 250 | 1400 | 500 | 2500 | 1500 | 4400 | SHOW | ||||||||||||||||
| 642430 | 30 | 250 | 1700 | 600 | 3000 | 1500 | 5250 | SHOW | ||||||||||||||||
| 642440 | 40 | 300 | 2250 | 800 | 4000 | 2000 | 4000 | SHOW | ||||||||||||||||
| 642450 | 50 | 300 | 2800 | 1000 | 5000 | 2000 | 4750 | SHOW | ||||||||||||||||
| 642460 | 60 | 300 | 3350 | 1200 | 6000 | 2000 | 5600 | SHOW | ||||||||||||||||
| 642470 | 70 | 300 | 3900 | 1400 | 7000 | 2000 | 6500 | SHOW | ||||||||||||||||
| 642480 | 80 | 300 | 4450 | 1600 | 8000 | 2000 | 7500 | SHOW | ||||||||||||||||
| 642490 | 90 | 300 | 5000 | 1800 | 9000 | 2000 | 8500 | SHOW | ||||||||||||||||
| 6424100 | 100 | 300 | 5600 | 2000 | 10000 | 2000 | 9500 | SHOW | ||||||||||||||||
| 6424120 | 120 | 400 | 6700 | 2400 | 12000 | 2350 | 8250 | SHOW | ||||||||||||||||
| 6424150 | 150 | 400 | 8350 | 3000 | 15000 | 2350 | 10250 | SHOW | ||||||||||||||||
| 6424200 | 200 | 500 | 11100 | 4000 | 22000 | 2500 | 8500 | SHOW | ||||||||||||||||
| 6424250 | 250 | 500 | 14000 | 5000 | 30000 | 2500 | 14000 | SHOW | ||||||||||||||||
| 6424300 | 300 | 500 | 16850 | 6000 | 32000 | 3000 | 12500 | SHOW | ||||||||||||||||
