ABOVE GROUND STAINLESS STEEL GREASE WATER SEPARATOR MANUEL

HOME PAGE| Products| Separators| Grease Separators - METUGREASE| ABOVE GROUND STAINLESS STEEL GREASE WATER SEPARATOR MANUEL

Teknik çizim

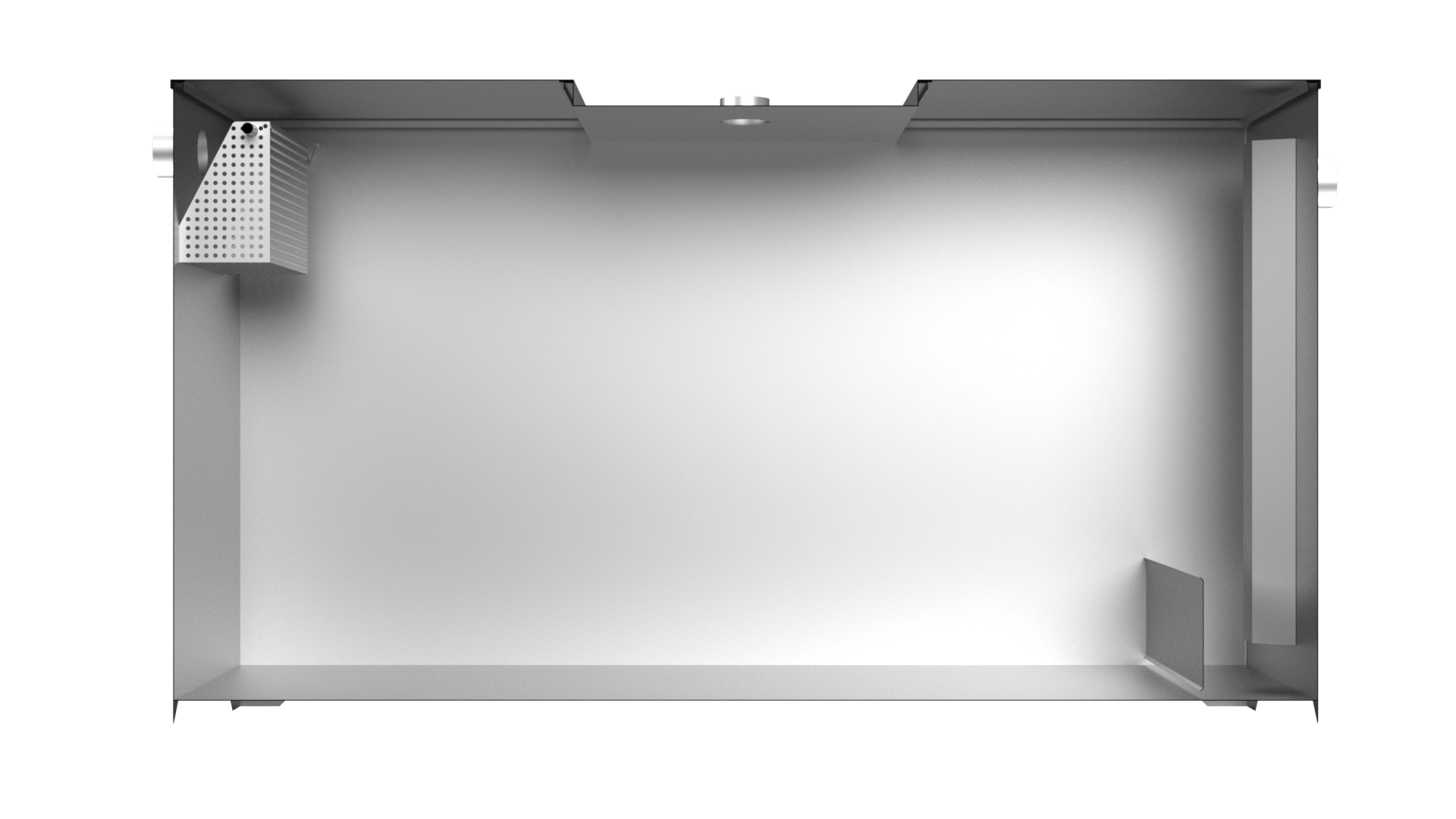

ABOVE GROUND STAINLESS STEEL GREASE WATER SEPARATOR MANUEL

Yerli Üretim

Stok Kodu: 1121

This product is a system designed to separate grease from

both domestic and commercial wastewater in accordance

with EN 1825 standards. Greases referred to here are

substances of vegetable or animal origin, having a density

of less than 0.95 g/cm3 and being partially or completely

insoluble in water. Proper operation necessitates adherence

to disposal and maintenance cycles.

Kitchen operations catering establishments

Restaurants and hotels

Motorway service stations and canteens

Butcher shops

Slaughterhouses

Oil mills

Cooking oil refineries

Canning factories

Grilling, roasting- frying kitchens

Documents:

Code(ss304)	Code(ss316)	NS (lt/sec)	DN	Total Volume (lt)	Grease Volume (lt)	Sludge Volume (lt)	H1	H2	H3	H4	L1	L2	B1	B2	LINK
11211	21211	1	100	250	100	100	570	500	100	826	1200	1200	500	580	SHOW
11212	21212	2	100	504	120	200	750	680	100	1006	1200	1400	600	680	SHOW
11213	21213	3	100	720	150	300	830	760	100	1106	1500	1700	600	680	SHOW
11214	21214	4	100	998	200	400	1000	980	100	1256	1500	1700	700	780	SHOW
11215	21215	5	100	1232	300	500	1165	1095	100	1417	1500	1700	750	830	SHOW
11217	21217	7	150	1890	450	700	1050	980	100	1356	2000	2200	800	880	SHOW
11219	21219	9	150	2250	600	900	1050	980	100	1356	2500	2700	900	980	SHOW
112110	212110	10	150	2500	700	1000	1050	1180	100	1457	2500	2700	900	980	SHOW
112113	212113	13	200	3429	900	1300	1250	1180	100	1557	3000	3200	900	980	SHOW
112114	212114	16	200	4158	1100	1600	1300	1230	100	1607	3500	3700	900	980	SHOW
112120	212120	20	200	5280	1400	2000	1300	1230	100	4000	4000	4200	1000	1080	SHOW
112130	212130	30	250	7200	1800	3000	1300	1230	100	1700	5300	5500	1100	1180	SHOW
