ABOVE GROUND STAINLESS STEEL OIL WATER SEPARATOR MANUEL CLASS I


Teknik çizim

product

ABOVE GROUND STAINLESS STEEL OIL WATER SEPARATOR MANUEL CLASS I

Yerli Üretim

Stok Kodu: 1421

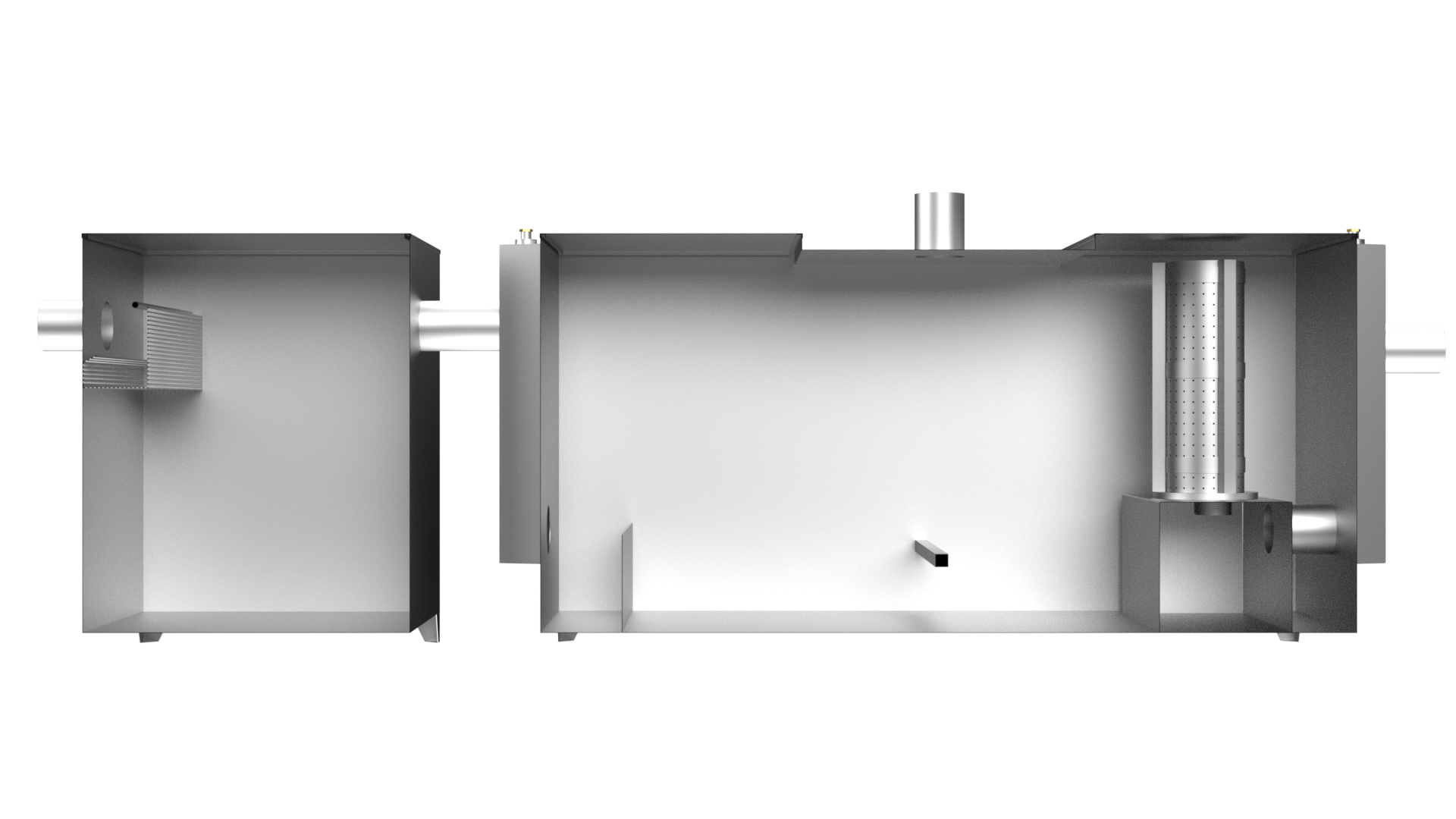

Manual oil water separator according to EN 858 class I, is
suitable for free standing application and for installation on
floor or in floor type applications, at the places free from
frost. The separator made of 304 grade or 316 grade stainless
steel is equipped with a separated sludge trap and
cleanable sludge basket and oil separation unit, a valve to
dipsosal accumulated oil. The separator with a coalescer
unit, equipped with a float valve that automatically shuts off
the outlet when the accumulated oil level increases.

Gas stations, Parking areas, Truck yards, Car dealerships, auto repair shops, car wash, bus garage, military hangar and storage facility, fire station, engine cleaning, workshops, vehicle recovery, airport aprons, railway – metro stations, container terminals, industrial facilities, oil facilities with risk of accidental oil spills.
Documents:

Code(ss304)Code(ss316)NS (lt/sec)DNTotal Volume
(lt)
Oil Volume   (lt)Sludge   Volume   (lt)L1L2L3BA1A2H1H2H3H4LINK
1421124211110022030105100011411341400400600620550100

950

SHOW

142132421331003209012010001283483400400600700650100950SHOW
142162421661508901802002000163318335305307309208701001100SHOW
142102421010150309530092025002783298310001000120010013201001320SHOW
